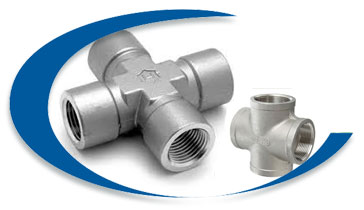

Threaded Cross Fitting
Trident Enterprises is one of eminent manufacturers and suppliers of high grade Threaded Cross Fitting. Trident Enterprises overseas offers a commendable range of Threaded Cross Fitting, for the prestigious client with competitive price. Export packaging is grade towards the protection, handling and transport of Threaded Cross Fitting by air or sea freight, as such shares many characteristics with export and transport Threaded Cross Fitting packing. Backed by a diligent teen of professional, we are engaged in offering an excellent quality range of Threaded Cross Fitting.
Trident Enterprises is an Threaded Cross Fitting stockholders and suppliers, delivering to whole of the world. We are an ISO 9001:2008,ISO 9001-2008, ISO 14001-2004, OHSAS 18001-2007, NSIC-CRISIL, EEPC, and QA-UKAS (ISO 9001-2008), SSI Certified company that follows total Quality Management System. and have been recognized as one of the world’s leading stockists and manufacturer of quality metals for over two decades and are committed to quick responses, unsurpassed quality, competitive pricing, reliable deliveries and an exhaustive inventory. Threaded Cross Fitting to internationally approved quality standards for application. Threaded Cross Fitting have excellent quality to fully satisfy customer's requirement. We can offer high quality electro polish fittings. Threaded Cross Fitting are manufactured in accordance with national and international product standards, While we can also produce fittings as per special specification of our customers. In case of custom size fabricate Threaded Cross Fitting; the welding is done carried out by qualified personnel.
Threaded Cross Fitting Specification
| Type | Threaded Fitting |
| Standard | ANSI B 16.9, ANSI B16.28, MSS SP43, MSS P75, JIS2311, JIS 2312, JIS2313, DIN2605 , GB-12459, GB-T13401 etc. |
| Material | Stainless Steel, Duplex, Super Duplex, Carbon Steel, Alloy Steel, Monel, Inconel, Hastelloy, Tatanium & Special Metals |
| Size | NPS ½" through 4" |
| Thickness | SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP |
| Order | Accept custom order |
Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/ 46/ 52/ 56/ 60/ 65/ 70 |
Alloy Steel: ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91 |
Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/2205 Duplex Fittings |
Copper Nickel: CuNi10Fe1Mn, CuNi30Mn1Fe |
Other Materials: Monel, Nickel, Inconel, Hastelloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, Zinc, Lead, etc. |

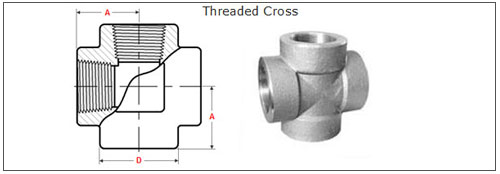

Threaded Cross Fitting Dimension
| NPS | Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|---|---|---|---|
| 1/2 | 33 | 28 | 3.18 |
| 3/4 | 38 | 33 | 3.18 |
| 1 | 46 | 38 | 3.68 |
| 1¼ | 56 | 44 | 3.89 |
| 1½ | 62 | 51 | 4.01 |
| 2 | 75 | 60 | 4.27 |
| 2½ | 92 | 76 | 5.61 |
| 3 | 109 | 86 | 5.99 |
| 4 | 146 | 106 | 6.55 |
Dimensions threaded Crosse - NPS 1/2 to 4 - 3000 LBS -
| NPS | Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|---|---|---|---|
| 1/2 | 38 | 33 | 4.09 |
| 3/4 | 46 | 38 | 4.32 |
| 1 | 56 | 44 | 4.98 |
| 1¼ | 62 | 51 | 5.28 |
| 1½ | 75 | 60 | 5.56 |
| 2 | 84 | 64 | 7.14 |
| 2½ | 102 | 83 | 7.65 |
| 3 | 121 | 95 | 8.84 |
| 4 | 152 | 114 | 11.18 |
