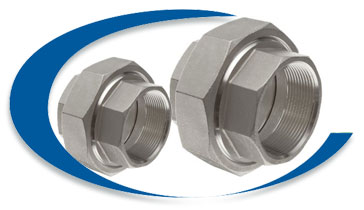

Threaded Union Fitting
Trident Enterprises is one of eminent manufacturers and suppliers of high grade Threaded Union Fitting. Trident Enterprises overseas offers a commendable range of Threaded Union Fitting, for the prestigious client with competitive price. Export packaging is grade towards the protection, handling and transport of Threaded Union Fitting by air or sea freight, as such shares many characteristics with export and transport Threaded Union Fitting packing. Backed by a diligent teen of professional, we are engaged in offering an excellent quality range of Threaded Union Fitting.
Trident Enterprises is an Threaded Union Fitting stockholders and suppliers, delivering to whole of the world. We are an ISO 9001:2008,ISO 9001-2008, ISO 14001-2004, OHSAS 18001-2007, NSIC-CRISIL, EEPC, and QA-UKAS (ISO 9001-2008), SSI Certified company that follows total Quality Management System. and have been recognized as one of the world’s leading stockists and manufacturer of quality metals for over two decades and are committed to quick responses, unsurpassed quality, competitive pricing, reliable deliveries and an exhaustive inventory. Threaded Union Fitting to internationally approved quality standards for application. Threaded Union Fitting have excellent quality to fully satisfy customer's requirement. We can offer high quality electro polish fittings. Threaded Union Fitting are manufactured in accordance with national and international product standards, While we can also produce fittings as per special specification of our customers. In case of custom size fabricate Threaded Union Fitting; the welding is done carried out by qualified personnel.
Threaded Union Fitting Specification
| Type | Threaded Union |
| Standard | ANSI B 16.9, ANSI B16.28, MSS SP43, MSS P75, JIS2311, JIS 2312, JIS2313, DIN2605 , GB-12459, GB-T13401 etc. |
| Material | Stainless Steel, Duplex, Super Duplex, Carbon Steel, Alloy Steel, Monel, Inconel, Hastelloy, Tatanium & Special Metals |
| Size | NPS ½" through 4" |
| Schedule | Sch 5s to Sch XXS and other heady thickness. |
| Quality Assurance | All fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
| Marking & Packing | Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All buttweld fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.#Protected by End Caps. |
| Value Added Services |
|
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
Carbon Steel: ASTM A105, A350 LF2, LF3, LF6. |
Alloy Steel: ASTM A182 F5, F9, F91, F22. |
Stainless Steel: ASTM A182 F304, 304L, 304H, 310, 316, 316L, 316H, 316Ti, 317L, 347, 347H, 321, 321H, F20, F44, F904L. |
Duplex & Super Duplex : : ASTM A182 F51, F60, UNS S31803, UNS S32205, F53, F55, UNS S32750, UNS S32760. |
Nickel Alloy Steel: Inconel : 600, 625, 718, Incolloy : 800, 800H, 800HT, 825, Hastelloy : B2, B3, C22, C276, C2000, Monel : 200, 201, 400, K500, Alloy 20 – UNS NO8020 |

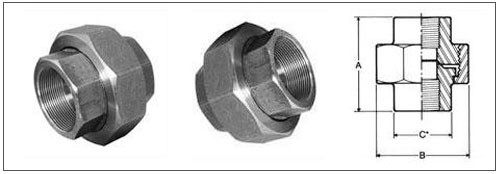

Threaded Union Fitting Dimension
| Class 3000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1 11/16 | 1 11/16 | 1 27/32 | 2 | 2 5/16 | 2 7/16 | 2 7/8 | 3 | 3 1/2 | 4 1/2 | 4 7/16 | |
| B | 1 31/64 | 1 31/64 | 1 11/16 | 1 15/16 | 2 3/8 | 2 25/32 | 3 23/64 | 3 23/32 | 4 27/64 | 5 15/64 | 6 5/32 | |
| C | 53/64 | 53/64 | 1 | 1 3/16 | 1 15/32 | 1 25/32 | 2 7/32 | 2 35/64 | 3 1/16 | 3 9/16 | 4 9/32 | |
| D | 25/32 | 25/32 | 31/32 | 1 3/32 | 1 5/32 | 1 3/8 | 1 45/64 | 1 7/8 | 2 1/16 | 2 3/8 | 2 7/16 | |
| E | 7/16 | 7/16 | 7/16 | 7/16 | 9/16 | 9/16 | 9/16 | 9/16 | 11/16 | 7/8 | 1 | |
| F | 0.420 | 0.555 | 0.690 | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | |
| 0.430 | 0.565 | 0.700 | 0.865 | 1.075 | 1.340 | 1.685 | 1.925 | 2.416 | 2.921 | 3.550 | ||
| Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |||
| A | 1 11/15 | 1 27/32 | 2 | 2 5/16 | 2 7/16 | 2 7/8 | 3 | 3 1/2 | 4 1/8 | |||
| B | 1 31/64 | 1 11/16 | 1 15/16 | 2 3/8 | 2 25/32 | 3 23/64 | 3 23/32 | 4 27/64 | 5 15/64 | |||
| C | 53/64 | 1 | 1 3/16 | 1 15/32 | 1 25/32 | 2 7/32 | 2 35/64 | 3 1/16 | 3 9/16 | |||
| D | 25/32 | 31/32 | 1 3/32 | 1 5/32 | 1 3/8 | 1 45/64 | 1 7/8 | 2 1/16 | 2 3/8 | |||
| E | 7/16 | 7/16 | 7/16 | 9/16 | 9/16 | 9/16 | 9/16 | 11/16 | 7/8 | |||
| F | 0.420 | 0.555 | 0.690 | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | |||
| 0.430 | 0.565 | 0.700 | 0.865 | 1.075 | 1.340 | 1.685 | 1.925 | 2.416 | ||||
Note:
"C" dimension is across octagon corners or a diameter as applicable.The 2.1/2" and 3" 3000LB and 2" 6000LB sizes have octagonal male and female ends; the other sizes are round.
