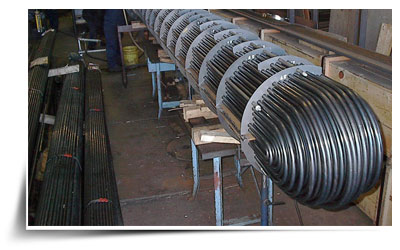

Carbon Steel Tubes
Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Carbon Steel Tubes. Available in different lengths, thicknesses and sizes, these Carbon Steel Tubes are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Carbon Steel Tubes as per customers’ requirements.
What is Carbon Steel?
Carbon Steel is steel in which the main interstitial alloying constituent is carbon in the range of 0.12–2.0%. The American Iron and Steel Institute (AISI) defines that:Steel is considered to be carbon steel when no minimum content is specified or required for chromium, cobalt, molybdenum, nickel, niobium, titanium, tungsten, vanadium or zirconium, or any other element to be added to obtain a desired alloying effect. not exceed the percentages noted: manganese 1.65, silicon 0.60, copper 0.60. The term "carbon steel" may also be used in reference to steel which is not stainless steel; in this use carbon steel may include alloy steels.
As the carbon percentage content rises, steel has the ability to become harder and stronger through heat treating; however, it becomes less ductile. Regardless of the heat treatment, a higher carbon content reduces weldability. In carbon steels, the higher carbon content lowers the melting point.
Specification
Type | Seamless Tube, ERW Tube, EFW Tube |
Standard | API 5L, ISO 3183, ASTM: A-53, A-333, A-334,ASTM: A-106, A-178, A-179, A-192, A-209, A-210, A-214, ASTM: A-500, A-501, ASTM: A-519, ASTM A-589, ASTM A671, BS : 3602, BS : 3059, IS : 1239 , 3589, CA55, CB60, CB65, CB70, CC60, CC65, CC70, CD70, CD80, CF65, CF70, CF66, CF71, CG100, CH100, CJ101, CJ102, CJ103, CJ104, CJ105, CJ106, CJ107, CJ108, CJ109, CJ110, CJ111, CJ112, CJ113, CK75, CP65, CP75 |
Grade | ASTM A106 GR.A, ASTM A106 GRADE B, ASTM A106 GRADE C, A53 GRADE A, A53 GRADE B, A333 GRADE 1, A333 GRADE 6, API 5L GRADE A, API 5L GRADE B, API 5L GRADE X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2, A519 4130. ASTM 671 GR. CC60, CC65, CC70, ASTM A672 GR. B60, B65, B70, C55, C60, C70. |
Size | ½”NB – 100”NB |
Thicknesses | SCH20 TO SCHXXS UPTO 250MMTHK. |
Length | 6- 18 METERS |
Quality Assurance | They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
Value Added Services |
|
Additional Test | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
SAE/AMS Specifications
SAE-J356 | Welded Flash Controlled Low Carbon Steel Tubing Normalized for Bending. Double Flaring and Beading. Covers normalized electric resistance welded tube ID flash-controlled .005" to .010" manipulative quality. |
---|---|
SAE-J524 | Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring. Covers cold drawn seamless JIC hydraulic line tubing. |
SAE-J525 | Welded and Drawn Low Carbon Steel Tubing Annealed for Bending and Flaring. Covers welded and drawn JIC hydraulic line tubing. |
SAE-J526 | Welded Low Carbon Steel Tubing. Covers annealed welded tube with ID flash-in for general automotive applications. |
SAE-J527 | Brazed Double Wall Carbon Steel Tubing. Covers copper brazed double wall low carbon steel tube intended for general automotive applications and other similar uses. Suitable for bending, forming and double flaring. |
SAE-J529 | Fuel Injection Tubing. Covers low carbon steel tube specially manufactured for high pressure fuel injection lines for diesel engines. |
AMS-5050 | Seamless Annealed Low Carbon Steel Tube. Covers cold drawn seamless JIC hydraulic line steel tubing for aircraft applications. |
AMS-5062 | Seamless Low Carbon Steel Tube. Covers cold finished or hot finished seamless low carbon mechanical steel tube. |
AMS-6360 | Seamless SAE 4130 Alloy Steel Tubing. Covers aircraft quality 4130 tube in condition N temper. Similar to MIL-T-6736 specification. |
AMS-6365 | Seamless SAE 4135 Alloy Steel Tubing. Covers aircraft quality 4135 tube in condition N temper. Similar to MIL-T-6735 specification. |
AMS-6371 | Seamless SAE 4130 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4130 aircraft tube, either hot finished or cold finished, hardenable. |
AMS-6372 | Seamless SAE 4135 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4135 aircraft tube, either hot finished or cold finished, hardenable. |
AMS-6381 | Seamless SAE 4140 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4140 aircraft tube, either hot finished or cold finished, hardenable. |
AMS-6415 | Seamless SAF 4340 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4340 aircraft tube, either hot finished or cold finished, hardenable. |
ASTM Specifications
A 53 | Welded and Seamless Steel Pipe |
---|---|
A 161 | Seamless Low-Carbon and Carbon-Molybdenum Steel Still Tubes for Refinery Service |
A 106 | Seamless Carbon Steel Pipe for High-Temperature Service |
A 178 | Electric-Resistance-Welded Carbon Steel Boiler Tubes |
A 120* | Black and Hot-Dipped Zinc-Coaled (Galvanized)Welded and Seamless Steel Pipe for Ordinary Uses |
A 179 | Seamless Cold-Drawn Low-Carbon Steel Heat-Ex-Changer and Condenser Tubes |
A 134 | Electric-Fusion (Aro)-Welded Steel Plate Pipe (Sizes 16 in. and Over) |
A 192 | Seamless Carbon Steel Boiler Tubes for High-Pressure Service |
A 135 | Electric-Resistance-Welded Steel Pipe |
A 199 | Seamless Cold-Drawn Intermediate Alloy-Steel Heat-Exchanger and Condenser Tubes |
A 139 | Electric-Fusion (Arc)-Welded Steel Pipe (Sizes 4 in. and Over) |
A 200 | Seamless Intermediate Alloy-Steel Still Tubes for Refinery Service |
A 209 | Seamless Carbon-Molybdenum Alloy-Steel Boiler and Superheater Tubes |
A 210 | Seamless Medium-Carbon Steel Boiler and Superheater Tubes |
A 211 | Spiral-Welded Steel or Iron Pipe |
A 213 | Seamless Ferritic Chrome-Moly Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes |
A 214 | Electric-Resistance-Welded Carbon Steel Heat-Exchanger and Condenser Tubes |
A 226 | Electric-Resistance-Welded Carbon Steel Boiler and Superheater Tubes for High-Pressure Service |
A 250 | Electric-Resistance-Welded Carbon Molybdenum Alloy-Steel Boiler and Superheater Tubes |
A 252 | Welded and Seamless Steel Pipe Piles |
A 254 | Copper Brazed Steel Tubing |
A 333 | Seamless and Welded Steel Pipe for Low-Temperature Service |
A 334 | Seamless and Welded Carbon and Alloy-Steel Tubes for Low-Temperature Service |
A 335 | Seamless Ferritic Alloy Steel Pipe for High-Temperature Service |
A 370 | Methods and Definitions for Mechanical Testing of Steel Products |
A 381 | Metal-Arc Welded Steel Pipe for High-Pressure Transmission Service |
A 405 | Seamless Ferritic Alloy-Steel Pipe Specially Heat Treated for High-Temperature Service |
A 422 | Butt Welds in Still Tubes for Refinery Service |
A 423 | Seamless and Electric Welded for Low Alloy Steel Tubes |
A 450 | General Requirements for Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes |
A 498 | Seamless and Welded Carbon, Ferritic, and Austenitic Alloy Steel Heat-Exchanger Tubes with Integral Fins |
A 500 | Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes |
A 501 | Hot-Formed Welded and Seamless Carbon Steel Structural Tubing |
A 512 | Cold-Drawn Buttweld Carbon Steel Mechanical Tubing (CDBW). Covers carbon steel mechanical tube manufactured from hot strip by the hot continuous weld process and subsequently cold drawn. Standard grades for CDBW are 1010, 1012 or 1020 depending upon various factors. |
A 513 | Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing (ERW-DOM). Covers carbon and alloy steel mechanical tube manufactured by cold forming and electric resistance welding of hot rolled or cold rolled strip. Type 1 covers As-Welded HREW, Type 2 covers As-Welded CREW Roth HREW and CREW usually are supplied in 1010 grade. Type 5 covers welded and drawn-over-mandrel (DOM) tube. DOM usually is supplied in 1020 or 1026 grade. |
A 519 | Seamless Steel Mechanical Tubing (CDS or HFS). Covers carbon and alloy steel mechanical tube manufactured by the seamless process (extruded or pierced) followed by hot finishing or cold finishing. Chemistry and dimensional tolerances are the controlling factors. Supplemental requirements are available on special order basis. Although many grades are listed, grades 1016, 1026, 4130 and 4140 are the most common for distributor stock. |
A 106 | Seamless Carbon Steel Mechanical Tubing (HFS). The applicable portions of this seamless carbon steel pipe specification establish chemistry and property limits for large OD heavy wall mechanical tube sizes not covered by ASTM-A-519 specification. |
A 520 | Supplementary Requirements for Seamless and ERW Carbon Steel Tubular Products for High-Temperature Service Conforming to ISO Recommendations for Boiler Construction |
A 523 | Plain End Seamless and Electric-Resistance-Welded Steel Pipe for High-Pressure Pipe-Type Cable Circuits |
A 524 | Seamless Carbon Steel Pipe forA tmospheric and Lower Temperatures |
A 530 | General Requirements for Specialized Carbon Steel and Alloy Pipe |
A 539 | Electric-Resistance-Welded Coiled Steel Tubing for Gas and Fuel Oil Lines |
A 556 | Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes |
A 557 | Electric-Resistance-Welded Carbon Steel Feedwater Heater Tubes |
A 587 | Electric-Resistance-Welded Carbon Steel Pipe for the Chemical Industry |
A 589 | Seamless and Welded Carbon Steel Water Well Pipe |
A 618 | Hot-Formed Welded and Seamless High-Strength Low-Alloy Structural Tubing |
A 655 | Special Requirements for Pipe and Tubing for Nuclear and Other Special Applications |
A 671 | Electric-Fusion-Welded Steel Pipe for Atmospheric and Lower Temperatures |
A 672 | Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures |
A 691 | Carbon and Alloy Steel Pipe, Electric-Fusion-Welded for High-Pressure Service at High Temperatures |
A 692 | Seamless Medium Strength Carbon-Molybdenum Alloy-Steel Roller and Superheater Tubes |
A 700 | Rec. Practice for Packaging, Marking, and Loading Methods for Steel Products for Domestic Shipment |
* Specification A 120 has been discontinued and superseded by A 53. |
Chemical Composition
CHEMICAL ANALYSIS |
||||||||
Specification | WT | C% | Mn% | P% MAX | S% MAX | Si% | Cr% | Mo% |
ASTM A 53/A |
AW AW AW AW AW |
0.25MAX |
0.95MAX 1.20MAX 0.27-0.93 0.29-1.06 0.29-1.06 |
0.050 0.050 0.025 0.025 0.025 |
0.060 0.060 0.025 0.025 0.025 |
- - 0.10MIN 0.10MIN 0.10MIN |
- - 0.40MAX 0.40MAX 0.40MAX |
- - 0.15MAX 0.15MAX 0.15MAX |
ASTM A 179 ASTM A 214 ASTM A 192 ASTM A 209/T1 ASTM A 209/T1a ASTM A 209/T1B ASTM A 210/A-1 ASTM A 210/C |
MW MW MW MW MW MW MW MW |
0.06-018 0.18MAX 0.06-0.18 0.10-0.20 0.15-0.25 0.14MAX 0.27MAX 0.35MAX |
0.27-0.63 0.27-0.63 0.27-0.63 0.30-0.80 0.30-0.80 0.30-0.80 0.93MAX 0.29-1.06 |
0.048 0.050 0.048 0.045 0.045 0.045 0.048 0.048 |
0.048 0.050 0.048 0.045 0.045 0.045 0.058 0.058 |
- - 0.25MAX 0.10-0.50 0.10-0.50 0.10-0.50 0.10MIN 0.10MIN |
- - - - - - - - |
- - - 0.44-0.65 0.44-0.65 0.44-0.65 - - |
ASTM A 213/T2 ASTM A 213/T5 ASTM A 213/T11 ASTM A 213/T12 ASTM A 213/T22 |
MW MW MW MW MW |
0.10/0.20 0.15MAX 0.15MAX 0.15MAX 0.15MAX |
0.30-0.61 0.30-0.60 0.30-0.60 0.30-0.61 0.30-0.60 |
0.045 0.030 0.030 0.045 0.030 |
0.045 0.030 0.030 0.045 0.030 |
0.10-0.30 0.50MAX 0.50-1.00 0.50MAX 0.50MAX |
0.50-0.81 4.00-6.00 1.00-1.50 0.80-1.25 1.90-2.60 |
0.44-0.65 0.44-0.65 0.44-0.65 0.44-0.65 0.87-1.13 |
ASTM A 333/1 ASTM A 333/6 ASTM A 334/1 ASTM A 334/6 |
AW AW AW AW |
0.30MAX 0.30MAX 0.30MAX 0.30MAX |
0.40-1.06 0.29-1.06 0.40-1.06 0.29-1.06 |
0.025 0.025 0.025 0.025 |
0.025 0.025 0.025 0.025 |
- 0.10MIN - 0.10MIN |
- - - - |
- - - - |
BS/3059/1/33 BS/3059/2/33 BS/3059/2/45 BS/3059/2/620 |
0.15MAX 0.15MAX 0.12-0.18 0.10-0.15 |
0.30-0.70 0.40-0.70 0.90-1.20 0.40-0.70 |
0.050 0.050 0.035 0.040 |
0.050 0.050 0.035 0.040 |
- 0.10-0.35 0.10-0.35 0.10-0.35 |
- - - 0.70-1.10 |
- - - 0.45-0.65 |
|
DIN/17175/ST35.8 DIN/17175/ST45.8 DIN/17175/15MO3 DIN/17175/13CrMO44 DIN/17175/10CrM910 |
0.17MAX 0.22MAX 0.12-0.20 0.10-0.18 0.15MAX |
0.40MIN 0.45MIN 0.50-0.80 0.40-0.70 0.40-0.60 |
0.040 0.040 0.040 0.040 0.040 |
0.040 0.040 0.040 0.040 0.040 |
0.35MAX 0.10-0.35 0.10-0.35 0.10-0.35 0.15-0.50 |
- - - 0.70-1.60 2.0-2.5 |
- - 0.25-0.35 0.40-0.50 0.9-1.10 |
|
X42 | 0.22 | 0.50-1.10 | 0.04 | 0.035 | 0.45 | - | - | |
X46 | ≤0.28 | ≤1.40 | ≤0.030 | ≤0.030 | - | - | - |
Physical Properties
PHYSICAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
Density |
7.87 g/cc |
0.284 lb/in³ |
Typical for steel |
API 5L Grade |
Yield Strength |
Tensile Strength |
Yield to Tensile Ratio |
Elongation |
A |
30 |
48 |
0.93 |
28 |
B |
35 |
60 |
0.93 |
23 |
X42 |
42 |
60 |
0.93 |
23 |
X46 |
46 |
63 |
0.93 |
22 |
X52 |
52 |
66 |
0.93 |
21 |
X56 |
56 |
71 |
0.93 |
19 |
X60 |
60 |
75 |
0.93 |
19 |
X65 |
65 |
77 |
0.93 |
18 |
X70 |
70 |
82 |
0.93 |
17 |
X80 |
80 |
90 |
0.93 |
16 |
Mechanical Properties
MECHANICAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
Hardness, Brinell |
163 |
163 |
|
Hardness, Knoop |
184 |
184 |
Converted from Brinell hardness |
Hardness, Rockwell B |
84 |
84 |
Converted from Brinell hardness |
Hardness, Vickers |
170 |
170 |
Converted from Brinell hardness |
Tensile Strength, Ultimate |
540 MPa |
78300 psi |
|
Tensile Strength, Yield |
415 MPa |
60200 psi |
|
Elongation at Break |
10% |
10% |
|
Reduction of Area |
35% |
35% |
|
Modulus of Elasticity |
200 GPa |
29000 ksi |
Typical for Steel |
Bulk Modulus |
140 GPa |
20300 ksi |
Typical for Steel |
Poisson's Ratio |
0.29 |
0.29 |
Typical for Steel |
Machinability |
160% |
160% |
Based on 100% machinability for AISI 1212 steel |
Shear Modulus |
80 GPa |
11600 ksi |
Typical for Steel |
Electrical Properties
ELECTRICAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
Electrical Resistivity |
1.74e-005 ohm-cm |
1.74e-005 ohm-cm |
Typical for steel |
Thermal Properties
THERMAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
CTE, linear 20°C |
11.5 µm/m-°C |
6.39 µin/in-°F |
|
CTE, linear 250°C |
12.2 µm/m-°C |
6.78 µin/in-°F |
Converted from Brinell hardness |
CTE, linear 500°C |
13.9 µm/m-°C |
7.72 µin/in-°F |
Converted from Brinell hardness |
CTE, linear 1000°C |
14.7 µm/m-°C |
8.17 µin/in-°F |
Converted from Brinell hardness |
Specific Heat Capacity |
0.472 J/g-°C |
0.113 BTU/lb-°F |
|
Thermal Conductivity |
51.9 W/m-K |
360 BTU-in /hr-ft²-°F |
