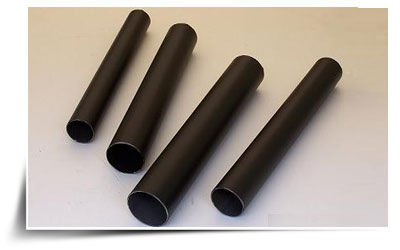

Mild Steel Tubes
Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Mild Steel Tubes. Available in different lengths, thicknesses and sizes, these Mild Steel Tubes are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Mild Steel Tubes as per customers’ requirements.
What is Mild Steel?
Mild steel[clarification needed], also known as plain-carbon steel, is now the most common form of steel because its price is relatively low while it provides material properties that are acceptable for many applications. Low-carbon steel contains approximately 0.05–0.15% carbon making it malleable and ductile. Mild steel has a relatively low tensile strength, but it is cheap and easy to form; surface hardness can be increased through carburizing.It is often used when large quantities of steel are needed, for example as structural steel. The density of mild steel is approximately 7.85 g/cm3 (7850 kg/m3 or 0.284 lb/in3) and the Young's modulus is 210 GPa (30,000,000 psi).
Low-carbon steels suffer from yield-point runout where the material has two yield points. The first yield point (or upper yield point) is higher than the second and the yield drops dramatically after the upper yield point. If a low-carbon steel is only stressed to some point between the upper and lower yield point then the surface may develop Lüder bands.Low-carbon steels contain less carbon than other steels and are easier to cold-form, making them easier to handle
Specification
| Type | Seamless Tube, ERW Tube, EFW Tube |
| Standard | IS 1161-1998, 10577-1982, 1239 (Part 1), 554: 1999, 3589-2001, 3601-2006, 4270,4270-2001 (Part 5), 4923-97, 4923-97 (Rect), 9295-1983, 9537, ISO 65-1981, BS 1387, ASTM A 53, DIN 2440 & 2441, 59410, EN 10255, EN 39, STAS 7656, STAS 7657 |
| Grade | Q195-Q345, Q235, Q345, Q195, Q215 |
| Outer Diameter | 20-355mm |
| Wall Thicknesses | 0.9-14mm |
| Length | 2-12m , according to customers' requirements |
| Quality Assurance | They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
| Value Added Services |
|
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
Chemical Compositions
| Carbon | 0.16-0.18% |
| Silicon | 0.40% max |
| Manganese | 0.70-0.90% |
| Sulphur | 0.040% Max |
| Phosphorus | 0.040% Max |
Mechanical properties
| Max Stress | 400-560 n/mm2 | dependent on ruling section |
| Yield Stress | 300-440 n/mm2 Min | dependent on ruling section |
| 0.2% Proof Stress | 280-420 n/mm2 Min | dependent on ruling section |
| Elongation | 10-14% Min | dependent on ruling section |
Physical Properties
| Physical Properties | Metric | Imperial |
|---|---|---|
| Density | 7.87 g/cc | 0.284 lb/in3 |
Electrical Properties
| Electrical Properties | Metric | English | Comments |
|---|---|---|---|
| Electrical resistivity @0°C (32°F) | 0.0000159 Ω-cm | 0.0000159 Ω-cm | annealed condition |
| @100 °C/ 212 °F | 0.0000219 Ω-cm | 0.0000219 Ω-cm | annealed condition |
| @ 200 °C/392 °F | 0.0000293 Ω-cm | 0.0000293 Ω-cm | annealed condition |
