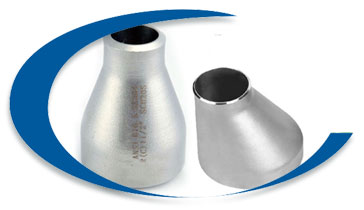

Butt weld Reducers Fittings Specification

Type Reducer Bw
Standard ANSI B 16.9, ANSI B16.28, MSS SP43, MSS P75, JIS2311, JIS 2312, JIS2313, DIN2605 , GB-12459, GB-T13401 etc.
Material Stainless Steel, Duplex, Super Duplex, Carbon Steel, Alloy Steel, Monel, Inconel, Hastelloy, Tatanium & Special Metals
Size 1/8” to 48”
Variation Concentric Reducer & Eccentric Reducer
Thickness SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP
Order Accept custom order
Quality Assurance

All fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All buttweld fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.#Protected by End Caps.

Value Added Services
  • Hot Dipped Galvanizing
  • Epoxy & FBE Coating
  • Electro Polish
  • Shot Blast / Sand Blast
Test Certificates Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report



Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/ 46/ 52/ 56/ 60/ 65/ 70

Alloy Steel: ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91

Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/2205 Duplex Fittings

Copper Nickel: CuNi10Fe1Mn, CuNi30Mn1Fe

Other Materials: Monel, Nickel, Inconel, Hastelloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, Zinc, Lead, etc.

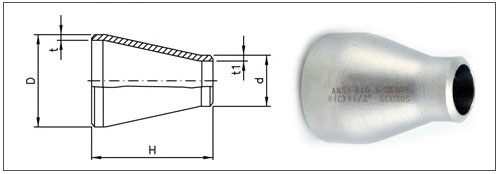

Butt weld Reducers Fittings Dimension



REDUCERS
inches mm D d H
3/4 x 3/4 20 x 15 26,67 21,34 38,10
3/4 x 3/8 20 x 10 26,67 17,14 38,10
1 x 3/4 25 x 20 33,40 26,67 50,80
1 x 1/2 25 x 15 33,40 21,34 50,80
1 1/4 x 1 32 x 25 42,16 33,40 50,80
1 1/4 x 3/4 32 x 20 42,16 26,67 50,80
1 1/4 x 1/2 32 x 15 42,16 21,34 50,80
1 1/2 x 1 1/4 40 x 32 48,26 42,16 63,50
1 1/2 x 1 40 x 25 48,26 33,40 63,50
1 1/2 x 3/4 40 x 20 48,26 26,67 63,50
1 1/2 x 1/2 40 x 15 48,26 21,34 63,50
2 x 1 1/2 50 x 40 60,32 48,26 76,20
2 x 1 1/4 50 x 32 60,32 42,16 76,20
2 x 1 50 x 25 60,32 33,40 76,20
2 x 3/4 50 x 20 60,32 26,67 76,20
2 1/2 x 2 65 x 50 73,02 60,32 88,90
2 1/2 x 1 1/2 65 x 40 73,02 48,26 88,90
2 1/2 x 1 1/4 65 x 32 73,02 42,16 88,90
2 1/2 x1 65 x 25 73,02 33,40 88,90
3 x 2 1/2 80 x 65 88,90 73,02 88,90
3 x 2 80 x 50 88,90 60,32 88,90
3 x 1 1/2 80 x 40 88,90 48,26 88,90
3 x 1 1/4 80 x 32 88,90 42,16 88,90
3 1/2 x 3 90 x 80 101,60 88,90 101.60
3 1/2 x 2 1/2 90 x 65 101,60 73,02 101.60
3 1/2 x 2 90 x 50 101,60 60,32 101.60
3 1/2 x 1 1/2 90 x 40 101,60 48,26 101.60
3 1/2 x 1 1/4 90 x 32 101,60 42,16 101.60
4 x 3 1/2 100 x 90 114,30 73,02 101.60
4 x 3 100 x 80 114,30 88,90 101.60
4 x 2 1/2 100 x 65 114,30 73,02 101.60
4 x 2 100 x 50 114,30 60,32 101.60
4 x 1 1/2 100 x 40 114,30 48,26 101.60
5 x 4 125 x 100 141,30 114,30 127,00
5 x 3 1/2 125 x 90 141,30 101,60 127,00
5 x 3 125 x 80 141,30 88,90 127,00
5 x 2 1/2 125 x 65 141,30 73,02 127,00
5 x 2 125 x 50 141,30 60,32 127,00
6 x 5 150 x 125 168,27 141,30 139,7
6 x 4 150 x 100 168,27 114,30 139,7
6 x 1/2 150 x 90 168,27 101,60 139,7
6 x 3 150 x 80 168,27 88,90 139,7
6 x 1/2 150 x 65 168,27 73,02 139,7
8 x 6 200 x 150 219,07 168,27 152,4
8 x 5 200 x 125 219,07 141,30 152,4
8 x 4 200 x 100 219,07 114,30 152,4
8 x 3 1/2 200 x 90 219,07 101,60 152,4
10 x 8 250 x 200 273,05 219,07 177,8
10 x 6 250 x 150 273,05 168,27 177,8
10 x 5 250 x 125 273,05 141,30 177,8
10 x 4 250 x 100 273,05 114,30 177,8
12 x 10 300 x 250 323,85 273,05 203,2
12 x 8 300 x 200 323,85 219,07 203,2
12 x 6 300 x 150 323,85 168,27 203,2
12 x 5 300 x 125 323,85 141,30 203,2
14 x 12 350 x 300 355,60 323,85 330,2
14 x 10 350 x 250 355,60 273,05 330,2
14 x 8 350 x 200 355,60 219,07 330,2
14 x 6 350 x 150 355,60 168,27 330,2
16 x 14 400 x 350 406,40 355,60 355,6
16 x 12 400 x 300 406,40 323,85 355,6
16 x 10 400 x 250 406,40 273,05 355,6
16 x 8 400 x 200 406,40 219,07 355,6
18 x 16 450 x 400 457,20 406,40 381,0
18 x 14 450 x 350 457,20 355,60 381,0
18 x 12 450 x 300 457,20 323,85 381,0
18 x 10 450 x 250 457,20 273,05 381,0
20 x 18 500 x 450 508,00 457,20 508,0
20 x 16 500 x 400 508,00 406,40 508,0
20 x 14 500 x 350 508,00 355,60 508,0
20 x 12 500 x 300 508,00 323,85 508,0
22 x 20 550 x 500 558,80 508,00 508,0
22 x 18 550 x 450 558,80 457,20 508,0
22 x 16 550 x 400 558,80 406,40 508,0
22 x 14 550 x 350 558,80 355,60 508,0
24 x 22 600 x 550 609,6 558,80 508,0
24 x 20 600 x 500 609,6 508,00 508,0
24 x 18 600 x 450 609,6 457,20 508,0
24 x 16 600 x 400 609,6 406,40 508,0
Dimension in mm.



REDUCERS - Ansi 16.9 tolerances

DIMENSIONAL TOLERANCES - REDUCERS
  Reducers
Nominal Pipe Size (NPS) Outside Ø at Bevel Inside Ø at End Wall Thickness
t / t1		 Overall Length
H
1/2 a 2 1/2 1 0,8 Not 2
3 a 3 1/2 1 1,6 less 2
4 +2 -1 1,6 than 2
5 a 6 +3 -1 1,6 87,50% 2
8 2 1,6 of nominal 2
10 +4 -3 3,2 tickness 2
12 a 18 +4 -3 3,2 3
20 a 24 +6 -5 4,8 3
26 a 30 +7 -5 4,8 3
32 a 48 +7 -5 4,8 5



REDUCERS - Weights

WEIGHTS OF FITTINGS
NPS
inches		 REDUCERS*
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1/2 0.04 0.04 0.05 0.06
3/4 0.10 0.10 0.14 0.18
1 0.12 0.12 0.16 0.22
1 1/4 0.18 0.18 0.22 0.27
1 1/2 0.21 0.21 0.28 0.33
2 0.30 0.30 0.40 0.55
2 1/2 0.45 0.45 0.80 1.00
3 0.50 0.50 0.90 1.20
4 0.80 0.80 1.50 2.20
5 1.40 1.40 2.70 3.70
6 2.00 2.00 4.00 5.80
8 3.10 3.10 6.90 9.30
10 4.80 4.80 10.5 14.5
12 9.00 9.00 19.0 25.0
14 15.5 15.5 31.0 41.5
16 19.0 19.0 38.0 50.5
18 23.0 23.0 46.0 61.5
20 34.0 34.0 58.5 78.0
24 50.0 50.0 75.0 100
Approximate weights in kg, density 8 kg/dm3
Weights are referred to the reduction with the first smaller diameter
