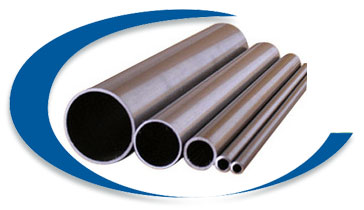

ERW Tubes
Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter ERW Tubes. Available in different lengths, thicknesses and sizes, these ERW Tubes are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered ERW Tubes as per customers’ requirements.
What is ERW Tube?
ERW Tubes mean Electric Resistance EFW Tubes. ERW Tubes are used. ERW Tubes are used in various engineering purposes, fencing, scaffolding, line pipes etc. ERW steel Tubes and tube are available in various qualities, wall thicknesses, and diameters of the finished ERW Tubes.These ERW Tubes are provided to patrons in various sizes and lengths at most competitive prices. Apart from this, our offered ERW Tubes are widely demanded by various factories, industries and workshops.
We are an ISO 9001:2008,ISO 9001-2008, ISO 14001-2004, OHSAS 18001-2007, NSIC-CRISIL, EEPC, and QA-UKAS (ISO 9001-2008), SSI Certified company that follows total Quality Management System. and have been recognized as one of the world’s leading stockists and manufacturer of quality metals for over two decades and are committed to quick responses, unsurpassed quality, competitive pricing, reliable deliveries and an exhaustive inventory.
Specification
| Type | ERW Tubes |
| Standard | ASTM A312, ASTM A358, ASTM A813, ASTM A814 |
| Range | 15 NB UP TO 600 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS |
| Size | OD (6-710) x (0.9-40) x MAX 13000mm |
| Outer Diameter | 21.3 to 712mm |
| Length | SINGLE RANDOM, DOUBLE RANDOM & CUT LENGTH |
| Delivery time | up to the order quantity |
| Order | Accept custom order |
| Quality Assurance | They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
| Marking & Packing | Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases.On special requests we can also, make custom marking on our products. |
| Application |
|
| Test Certificates | Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. / Under Third Party Inspection with Excise Gate Pass to available benefit. |
Nominal Wall Thickness:
- Nominal Wall Tolerance Plus 12.5%, Minus 12.5%
- These do not conform to the American National Standard for Welded and Seamless Wrought Steel Pipe
(ANSI B 36.10 – 1979)
| NPS Designator | Outside Diameter in. | Schedule 10S in. | Schedule 40S in. | Schedule 80S in. | Schedule 160 in. | Schedule XX in. |
|---|---|---|---|---|---|---|
| 1/4 | 0.540 | 0.065 | 0.088 | 0.119 | ||
| 3/8 | 0.675 | 0.065 | 0.091 | 0.126 | ||
| 1/2 | 0.840 | 0.083 | 0.109 | 0.147 | .188 | .294 |
| 3/4 | 1.050 | 0.083 | 0.113 | 0.154 | .218 | .308 |
| 1.0 | 1.315 | 0.109 | 0.133 | 0.179 | .250 | .358 |
| 1 1/4 | 1.660 | 0.109 | 0.140 | 0.191 | .250 | .382 |
| 1 1/2 | 1.900 | 0.109 | 0.145 | 0.200 | .281 | .400 |
| 2 | 2.375 | 0.109 | 0.154 | 0.218 | .343 | .436 |
| 2 1/2 | 2.875 | 0.120 | 0.203 | 0.276 | .375 | .552 |
| 3 | 3.500 | 0.120 | 0.216 | 0.300 | .438 | .600 |
| 3 1/2 | 4.000 | 0.120 | 0.226 | 0.318 | .636 | |
| 4 | 4.500 | 0.120 | 0.237 | 0.337 | .534 | .674 |
| 5 | 5.563 | 0.134 | 0.258 | 0.375 | .625 | .750 |
| 6 | 6.625 | 0.134 | 0.280 | 0.432 | .719 | .864 |
| 8 | 8.625 | 0.148 | 0.322 | 0.500 | .906 | .875 |
| 10 | 10.750 | 0.165 | 0.365 | 0.500 | 1.125 | |
| 12 | 12.750 | 0.180 | 0.375 | 0.500 | 1.312 | |
| 14 | 14.000 | 0.188 | 0.375 | 0.500 | 1.406 | |
| 16 | 16.000 | 0.188 | 0.375 | 0.500 | 1.594 |
Minimum Wall Thickness on Inspection:
- The following equation, upon which this table is based, may be applied to calculate minimum wall thicknesses from nominal wall thickness:
tn * 0.875 = tm
Where:
tn = nominal wall thickness, in. [mm], and
tm= minimum wall thicknesses, in. [mm] - The wall thickness is inch-pound units is rounded to three decimal places in accordance with the rounding method of Practice E29. The wall thickness in SI units is rounded to one decimal place in accordance with the rounding method of Practice E29.
- This table is a master table covering wall thicknesses available in the purchase of different classifications of pipe, but it is not meant to imply that all the walls listed herein are necessarily obtainable for the applicable product specification.
| Nominal Thickness | Minimum Thickness on Inspection | Nominal Thickness | Minimum Thickness on Inspection | Nominal Thickness | Minimum Thickness on Inspection | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 0.068 | 1.7 | 0.060 | 1.5 | 0.294 | 7.5 | 0.257 | 6.5 | 0.750 | 19.0 | 0.658 | 16.6 |
| 0.068 | 2.2 | 0.077 | 2.0 | 0.300 | 7.6 | 0.262 | 6.7 | 0.812 | 20.6 | 0.710 | 18.0 |
| 0.091 | 2.3 | 0.080 | 2.0 | 0.307 | 7.8 | 0.269 | 6.8 | 0.843 | 21.4 | 0.736 | 18.7 |
| 0.095 | 2.4 | 0.083 | 2.1 | 0.308 | 7.8 | 0.270 | 6.9 | 0.854 | 21.7 | 0.756 | 19.2 |
| 0.113 | 2.9 | 0.099 | 2.5 | 0.312 | 7.9 | 0.273 | 6.9 | 0.875 | 22.2 | 0.766 | 19.5 |
| 0.119 | 3.0 | 0.104 | 2.6 | 0.318 | 8.1 | 0.278 | 7.1 | 0.906 | 23.0 | 0.783 | 20.1 |
| 0.125 | 3.2 | 0.109 | 2.8 | 0.322 | 8.2 | 0.282 | 7.2 | 0.937 | 23.8 | 0.820 | 20.8 |
| 0.126 | 3.2 | 0.110 | 2.8 | 0.330 | 8.4 | 0.289 | 7.3 | 0.968 | 24.6 | 0.847 | 21.5 |
| 0.133 | 3.4 | 0.116 | 2.9 | 0.337 | 8.6 | 0.295 | 7.5 | 1.000 | 25.4 | 0.875 | 22.2 |
| 0.140 | 3.6 | 0.122 | 3.1 | 0.343 | 8.7 | 0.300 | 7.6 | 1.031 | 26.2 | 0.902 | 22.9 |
| 0.145 | 3.7 | 0.127 | 3.2 | 0.344 | 8.7 | 0.301 | 7.6 | 1.062 | 27.0 | 0.929 | 23.6 |
| 0.147 | 3.7 | 0.129 | 3.3 | 0.358 | 9.1 | 0.313 | 8.0 | 1.083 | 27.8 | 0.956 | 24.3 |
| 0.154 | 3.9 | 0.135 | 3.4 | 0.365 | 9.3 | 0.319 | 8.1 | 1.125 | 28.6 | 0.984 | 25.0 |
| 0.156 | 4.0 | 0.136 | 3.5 | 0.375 | 9.5 | 0.328 | 8.3 | 1.156 | 29.4 | 1.012 | 25.7 |
| 0.179 | 4.5 | 0.157 | 4.0 | 0.382 | 9.7 | 0.334 | 8.5 | 1.218 | 30.9 | 1.066 | 27.1 |
| 0.187 | 43.7 | 0.164 | 4.2 | 0.400 | 10.2 | 0.350 | 8.9 | 1.250 | 31.8 | 1.094 | 27.8 |
| 0.188 | 4.8 | 0.164 | 4.2 | 0.406 | 10.3 | 0.355 | 9.0 | 1.281 | 32.5 | 1.121 | 28.5 |
| 0.191 | 4.9 | 0.167 | 4.2 | 0.432 | 10.4 | 0.378 | 9.6 | 1.312 | 33.3 | 1.148 | 29.2 |
| 0.200 | 5.1 | 0.175 | 4.4 | 0.436 | 11.1 | 0.382 | 9.7 | 1.343 | 34.1 | 1.175 | 29.8 |
| 0.203 | 5.2 | 0.178 | 4.5 | 0.437 | 11.1 | 0.382 | 9.7 | 1.375 | 34.9 | 1.203 | 30.6 |
| 0.216 | 5.5 | 0.189 | 4.8 | 0.438 | 11.1 | 0.383 | 9.7 | 1.406 | 35.7 | 1.230 | 31.2 |
| 0.218 | 5.5 | 0.191 | 4.9 | 0.500 | 12.7 | 0.438 | 11.1 | 1.436 | 36.5 | 1.258 | 32.0 |
| 0.219 | 5.6 | 0.192 | 4.9 | 0.531 | 13.5 | 0.465 | 11.8 | 1.500 | 36.1 | 1.312 | 33.3 |
| 0.226 | 5.7 | 0.196 | 5.0 | 0.552 | 14.0 | 0.483 | 12.3 | 1.531 | 38.9 | 1.340 | 34.0 |
| 0.237 | 6.0 | 0.207 | 5.2 | 0.562 | 14.3 | 0.492 | 12.5 | 1.562 | 39.7 | 1.367 | 34.7 |
| 0.250 | 6.4 | 0.219 | 5.6 | 0.593 | 15.1 | 0.519 | 13.2 | 1.593 | 40.5 | 1.394 | 35.4 |
| 0.258 | 6.6 | 0.226 | 5.7 | 0.600 | 15.2 | 0.525 | 13.3 | 1.750 | 44.5 | 1.531 | 38.9 |
| 0.276 | 7.0 | 0.242 | 6.1 | 0.625 | 15.9 | 0.547 | 13.9 | 1.781 | 45.2 | 1.558 | 39.6 |
| 0.277 | 7.0 | 0.242 | 6.1 | 0.656 | 16.6 | 0.573 | 14.6 | 1.812 | 46.0 | 1.586 | 49.3 |
| 0.279 | 7.1 | 0.244 | 6.2 | 0.674 | 17.1 | 0.590 | 15.0 | 1.968 | 50.0 | 1.772 | 43.7 |
| 0.280 | 7.1 | 0.245 | 6.2 | 0.687 | 17.4 | 0.601 | 15.3 | 2.062 | 52.4 | 1.804 | 45.8 |
| 0.281 | 7.1 | 0.246 | 6.2 | 0.719 | 18.3 | 0.629 | 16.0 | 2.343 | 59.5 | 2.050 | 52.1 |
Available Stock
| Pipe Type | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| Stainless Steel ERW Tubes | 1/8″ |
 |
|
|
|
|
| Stainless Steel ERW Tubes | 1/4″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 3/8″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 1/2″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 3/4″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 1″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 1 1/4″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 1 1/2″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 2″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 2 1/2″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 3″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 4″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 5″ |
|
|
|
|
|
| Stainless Steel ERW Tubes | 6″ |
|
|
|
|
