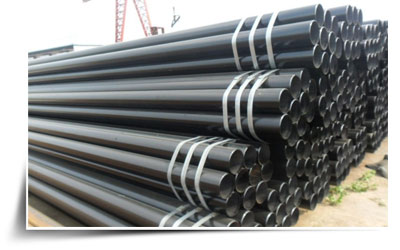

Carbon Steel Pipes
Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Carbon Steel Pipes. Available in different lengths, thicknesses and sizes, these Carbon Steel Pipes are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Carbon Steel Pipes as per customers’ requirements.
What is Carbon Steel?
Carbon Steel is steel in which the main interstitial alloying constituent is carbon in the range of 0.12–2.0%. The American Iron and Steel Institute (AISI) defines that:Steel is considered to be carbon steel when no minimum content is specified or required for chromium, cobalt, molybdenum, nickel, niobium, titanium, tungsten, vanadium or zirconium, or any other element to be added to obtain a desired alloying effect. not exceed the percentages noted: manganese 1.65, silicon 0.60, copper 0.60. The term "carbon steel" may also be used in reference to steel which is not stainless steel; in this use carbon steel may include alloy steels.
As the carbon percentage content rises, steel has the ability to become harder and stronger through heat treating; however, it becomes less ductile. Regardless of the heat treatment, a higher carbon content reduces weldability. In carbon steels, the higher carbon content lowers the melting point.
Specification
| Type | Seamless Pipe,ERW Pipe, EFW Pipe, Coated Pipe, Hfw, Saw, Lsaw, Dsaw, Hsaw, Spiral Weld Pipes, Line Pipes |
| Standard | API 5L, ISO 3183, ASTM: A-53, A-333, A-334,ASTM: A-106, A-178, A-179, A-192, A-209, A-210, A-214, ASTM: A-500, A-501, ASTM: A-519, ASTM A-589, ASTM A671, BS : 3602, BS : 3059, IS : 1239 , 3589, CA55, CB60, CB65, CB70, CC60, CC65, CC70, CD70, CD80, CF65, CF70, CF66, CF71, CG100, CH100, CJ101, CJ102, CJ103, CJ104, CJ105, CJ106, CJ107, CJ108, CJ109, CJ110, CJ111, CJ112, CJ113, CK75, CP65, CP75 |
| Grade | ASTM A106 GR.A, ASTM A106 GRADE B, ASTM A106 GRADE C, A53 GRADE A, A53 GRADE B, A333 GRADE 1, A333 GRADE 6, API 5L GRADE A, API 5L GRADE B, API 5L GRADE X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2, A519 4130. ASTM 671 GR. CC60, CC65, CC70, ASTM A672 GR. B60, B65, B70, C55, C60, C70. |
| Size | ½”NB – 100”NB |
| Thicknesses | SCH20 TO SCHXXS UPTO 250MMTHK. |
| Length | 6- 18 METERS |
| Quality Assurance | They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
| Value Added Services |
|
| Additional Test | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
Chemical Composition
CHEMICAL ANALYSIS |
||||||||
| Specification | WT | C% | Mn% | P% MAX | S% MAX | Si% | Cr% | Mo% |
ASTM A 53/A |
AW AW AW AW AW |
0.25MAX |
0.95MAX 1.20MAX 0.27-0.93 0.29-1.06 0.29-1.06 |
0.050 0.050 0.025 0.025 0.025 |
0.060 0.060 0.025 0.025 0.025 |
- - 0.10MIN 0.10MIN 0.10MIN |
- - 0.40MAX 0.40MAX 0.40MAX |
- - 0.15MAX 0.15MAX 0.15MAX |
| ASTM A 179 ASTM A 214 ASTM A 192 ASTM A 209/T1 ASTM A 209/T1a ASTM A 209/T1B ASTM A 210/A-1 ASTM A 210/C |
MW MW MW MW MW MW MW MW |
0.06-018 0.18MAX 0.06-0.18 0.10-0.20 0.15-0.25 0.14MAX 0.27MAX 0.35MAX |
0.27-0.63 0.27-0.63 0.27-0.63 0.30-0.80 0.30-0.80 0.30-0.80 0.93MAX 0.29-1.06 |
0.048 0.050 0.048 0.045 0.045 0.045 0.048 0.048 |
0.048 0.050 0.048 0.045 0.045 0.045 0.058 0.058 |
- - 0.25MAX 0.10-0.50 0.10-0.50 0.10-0.50 0.10MIN 0.10MIN |
- - - - - - - - |
- - - 0.44-0.65 0.44-0.65 0.44-0.65 - - |
| ASTM A 213/T2 ASTM A 213/T5 ASTM A 213/T11 ASTM A 213/T12 ASTM A 213/T22 |
MW MW MW MW MW |
0.10/0.20 0.15MAX 0.15MAX 0.15MAX 0.15MAX |
0.30-0.61 0.30-0.60 0.30-0.60 0.30-0.61 0.30-0.60 |
0.045 0.030 0.030 0.045 0.030 |
0.045 0.030 0.030 0.045 0.030 |
0.10-0.30 0.50MAX 0.50-1.00 0.50MAX 0.50MAX |
0.50-0.81 4.00-6.00 1.00-1.50 0.80-1.25 1.90-2.60 |
0.44-0.65 0.44-0.65 0.44-0.65 0.44-0.65 0.87-1.13 |
| ASTM A 333/1 ASTM A 333/6 ASTM A 334/1 ASTM A 334/6 |
AW AW AW AW |
0.30MAX 0.30MAX 0.30MAX 0.30MAX |
0.40-1.06 0.29-1.06 0.40-1.06 0.29-1.06 |
0.025 0.025 0.025 0.025 |
0.025 0.025 0.025 0.025 |
- 0.10MIN - 0.10MIN |
- - - - |
- - - - |
| BS/3059/1/33 BS/3059/2/33 BS/3059/2/45 BS/3059/2/620 |
0.15MAX 0.15MAX 0.12-0.18 0.10-0.15 |
0.30-0.70 0.40-0.70 0.90-1.20 0.40-0.70 |
0.050 0.050 0.035 0.040 |
0.050 0.050 0.035 0.040 |
- 0.10-0.35 0.10-0.35 0.10-0.35 |
- - - 0.70-1.10 |
- - - 0.45-0.65 |
|
| DIN/17175/ST35.8 DIN/17175/ST45.8 DIN/17175/15MO3 DIN/17175/13CrMO44 DIN/17175/10CrM910 |
0.17MAX 0.22MAX 0.12-0.20 0.10-0.18 0.15MAX |
0.40MIN 0.45MIN 0.50-0.80 0.40-0.70 0.40-0.60 |
0.040 0.040 0.040 0.040 0.040 |
0.040 0.040 0.040 0.040 0.040 |
0.35MAX 0.10-0.35 0.10-0.35 0.10-0.35 0.15-0.50 |
- - - 0.70-1.60 2.0-2.5 |
- - 0.25-0.35 0.40-0.50 0.9-1.10 |
|
| X42 | 0.22 | 0.50-1.10 | 0.04 | 0.035 | 0.45 | - | - | |
| X46 | ≤0.28 | ≤1.40 | ≤0.030 | ≤0.030 | - | - | - | |
Physical Properties
PHYSICAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
Density |
7.87 g/cc |
0.284 lb/in³ |
Typical for steel |
API 5L Grade |
Yield Strength |
Tensile Strength |
Yield to Tensile Ratio |
Elongation |
A |
30 |
48 |
0.93 |
28 |
B |
35 |
60 |
0.93 |
23 |
X42 |
42 |
60 |
0.93 |
23 |
X46 |
46 |
63 |
0.93 |
22 |
X52 |
52 |
66 |
0.93 |
21 |
X56 |
56 |
71 |
0.93 |
19 |
X60 |
60 |
75 |
0.93 |
19 |
X65 |
65 |
77 |
0.93 |
18 |
X70 |
70 |
82 |
0.93 |
17 |
X80 |
80 |
90 |
0.93 |
16 |
Mechanical Properties
MECHANICAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
Hardness, Brinell |
163 |
163 |
|
Hardness, Knoop |
184 |
184 |
Converted from Brinell hardness |
Hardness, Rockwell B |
84 |
84 |
Converted from Brinell hardness |
Hardness, Vickers |
170 |
170 |
Converted from Brinell hardness |
Tensile Strength, Ultimate |
540 MPa |
78300 psi |
|
Tensile Strength, Yield |
415 MPa |
60200 psi |
|
Elongation at Break |
10% |
10% |
|
Reduction of Area |
35% |
35% |
|
Modulus of Elasticity |
200 GPa |
29000 ksi |
Typical for Steel |
Bulk Modulus |
140 GPa |
20300 ksi |
Typical for Steel |
Poisson's Ratio |
0.29 |
0.29 |
Typical for Steel |
Machinability |
160% |
160% |
Based on 100% machinability for AISI 1212 steel |
Shear Modulus |
80 GPa |
11600 ksi |
Typical for Steel |
Electrical Properties
ELECTRICAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
Electrical Resistivity |
1.74e-005 ohm-cm |
1.74e-005 ohm-cm |
Typical for steel |
Thermal Properties
THERMAL PROPERTIES |
METRIC |
ENGLISH |
COMMENTS |
CTE, linear 20°C |
11.5 µm/m-°C |
6.39 µin/in-°F |
|
CTE, linear 250°C |
12.2 µm/m-°C |
6.78 µin/in-°F |
Converted from Brinell hardness |
CTE, linear 500°C |
13.9 µm/m-°C |
7.72 µin/in-°F |
Converted from Brinell hardness |
CTE, linear 1000°C |
14.7 µm/m-°C |
8.17 µin/in-°F |
Converted from Brinell hardness |
Specific Heat Capacity |
0.472 J/g-°C |
0.113 BTU/lb-°F |
|
Thermal Conductivity |
51.9 W/m-K |
360 BTU-in /hr-ft²-°F |
