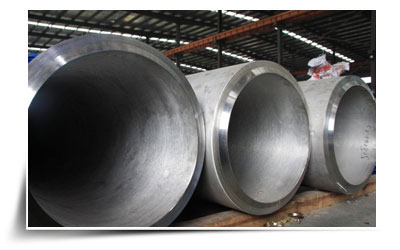

Titanium Pipe
Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Titanium Pipe. Available in different lengths, thicknesses and sizes, these Titanium Pipe are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Titanium Pipe as per customers’ requirements.
What is Titanium?
Titanium is a chemical element with symbol Ti and atomic number 22. It is a lustrous transition metal with a silver color, low density and high strength. It is highly resistant to corrosion in sea water, aqua regia and chlorine.Titanium was discovered in Cornwall, Great Britain, by William Gregor in 1791 and named by Martin Heinrich Klaproth for the Titans of Greek mythology. The element occurs within a number of mineral deposits, principally rutile and ilmenite, which are widely distributed in the Earth's crust and lithosphere, and it is found in almost all living things, rocks, water bodies, and soils. The metal is extracted from its principal mineral ores via the Kroll process or the Hunter process. Its most common compound, titanium dioxide, is a popular photocatalyst and is used in the manufacture of white pigments. Other compounds include titanium tetrachloride (TiCl4), a component of smoke screens and catalysts; and titanium trichloride (TiCl3), which is used as a catalyst in the production of polypropylene.
Titanium can be alloyed with iron, aluminium, vanadium, and molybdenum, among other elements, to produce strong, lightweight alloys for aerospace (jet engines, missiles, and spacecraft), military, industrial process (chemicals and petro-chemicals, desalination plants, pulp, and paper), automotive, agri-food, medical prostheses, orthopedic implants, dental and endodontic instruments and files, dental implants, sporting goods, jewelry, mobile phones, and other applications.The two most useful properties of the metal are corrosion resistance and the highest strength-to-density ratio of any metallic element.In its unalloyed condition, titanium is as strong as some steels, but less dense. There are two allotropic forms and five naturally occurring isotopes of this element, 46Ti through 50Ti, with 48Ti being the most abundant (73.8%).
Specification
| Type | Seamless Pipe, Welded Pipe |
| Standards | ASME SB-363, ASME SB-381, ASME SB-337, ASME SB-338, ASME SB-348, ASTM F-67, AMS 4921, ASME SB-265, AMS 4902, ASME SB-337, ASME SB-338, AMS 4942/tr> |
| Grade | Titanium Grade 1, Titanium Grade 2, Titanium Grade 3, Titanium Grade 4 & Titanium Grade 7 |
| UNSPSC Code | N04400 |
| Diameter | 5-110×0.4~6.0×2000-9000 |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
Chemical Composition
CHEMICAL, PHYSICAL AND MECHANICAL PROPERTIES |
|||||||
CHEMICAL COMPOSITION |
ASTM Grade |
||||||
(Max. Values) |
1 |
2 |
5 |
7 |
9 |
12 |
23 |
N, Nitrogen |
0,03 |
0,03 |
0,05 |
0,03 |
0,02 |
0,03 |
0,03 |
C, Carbon |
0,1 |
0,1 |
0,1 |
0,1 |
0,05 |
0,08 |
0,08 |
H, Hydrogen |
0,015 |
0,015 |
0,0125 |
0,015 |
0,013 |
0,015 |
0,0125 |
Fe, Iron |
0,2 |
0,3 |
0,4 |
0,3 |
0,25 |
0,3 |
0,25 |
O, Oxygen |
0,18 |
0,25 |
0,20 |
0,25 |
0,12 |
0,25 |
0.13 |
Pd, Palladium |
|
|
|
0,12-0,25 |
|
|
|
Al, Aluminum |
|
|
5,5-6,75 |
|
2,5-3,5 |
|
5,5-6.5 |
Mo, Molybdenum |
|
|
|
|
|
0,2-0,4 |
|
V, Vanadium |
|
|
3,5-4,5 |
|
2,0-3,0 |
|
3,5-4,5 |
Ni, Nickel |
|
|
|
|
|
0,6-0,9 |
|
Ti, Titanium |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
MECHANICAL PROPERTIES |
|
|
|
|
|
||
Tensile strength, min (Mpa) |
240,00 |
345,00 |
895,00 |
345,00 |
620,00 |
483,00 |
828,00 |
Yield strength, 0,2% Offset, min (Mpa) |
170,00 |
275,00 |
825,00 |
275,00 |
483,00 |
345,00 |
759,00 |
Elongation (in 4D, min, %) |
24,00 |
20,00 |
10,00 |
20,00 |
15,00 |
18,00 |
10,00 |
Reduction of Area, min, % |
30,00 |
30,00 |
25,00 |
30,00 |
25,00 |
25,00 |
15,00 |
Hardness * Interpolated |
Rb70 |
Rb80 |
Rc36 |
Rb80 |
Rc28 |
Rc17* |
|
