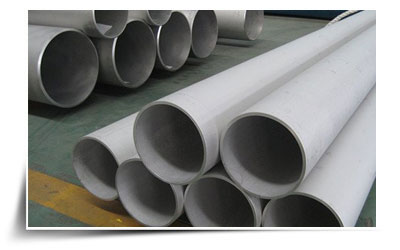

Hastelloy Pipe
Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Hastelloy Pipe. Available in different lengths, thicknesses and sizes, these Hastelloy Pipe are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Hastelloy Pipe as per customers’ requirements.
What is Hastelloy?
Hastelloy is the registered trademark name of Haynes International, Inc. The trademark is applied as the prefix name of a range of twenty-two different highly corrosion-resistant metal alloys, loosely grouped by the metallurgical industry under the material term “superalloys” or “high-performance alloys”.The predominant alloying ingredient is typically the transition metal nickel. Other alloying ingredients are added to nickel in each of the subcategories of this trademark designation and include varying percentages of the elements molybdenum, chromium, cobalt, iron, copper, manganese, titanium, zirconium, aluminum, carbon, and tungsten.
The primary function of the Hastelloy super alloys is that of effective survival under high-temperature, high-stress service in a moderately to severely corrosive, and/or erosion-prone environment where more common and less expensive iron-based alloys would fail, including the pressure vessels of some nuclear reactors, chemical reactors, distillation equipment, and pipes and valves in chemical industry. Although a super alloy, Hastelloy does experience degradation due to fabricating and handling. Electropolishing or passivation of Hastelloy can improve corrosion resistance.
Specification
| Type | Seamless Pipe, Welded Pipe |
| Trade Name | Hastelloy B, Hastelloy B-2, Hastelloy B-3, C-276, C-4, C-22, Hastelloy G, G-2, G-3, Hastelloy X |
| Grade | B/SB622 Ni-Mo,B/SB619 Ni-Mo, B/SB622 Ni-Mo, B/SB619 Ni-Mo, B/SB622 Low C Ni-Cr-Mo, B/SB619 Low C Ni-Cr-Mo, B/SB622 Ni-Cr-Mo-Fe, B/SB619 Ni-Cr-Mo-Fe, B/SB622 Ni-Cr-Fe-Mo-Cu, B/SB619 Ni-Cr-Fe-Mo-Cu |
| UNSPSC Code | UNS N10001, UNS N30012, UNS N10665, UNS J30007, UNS N10675, UNS N10276, UNS N30002, UNS N06455, UNS N26455, UNS N06022, UNS N26022, UNS N06007, UNS N06975, UNS N06985, UNS N06002 |
| Quality Assurance | They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
Chemical Composition
| Alloy | Co | Cr | Mo | W | Fe | Si | Mn | C | Ni | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| B-2 | 1* | 1* | 28 | – | 2* | 0.1* | 1* | 0.01* | Balance | – |
| B-3 | 3* | 1.5 | 28.5 | 3* | 1.5 | 0.1* | 3* | 0.01* | 65 min. | Al-0.5*, Ti-0.2* |
| C-4 | 2* | 16 | 16 | – | 3* | 0.08* | 1* | 0.01* | Balance | Ti-0.7* |
| C-2000 | 2* | 23 | 16 | – | 3* | 0.08* | – | 0.01* | Balance | Cu-1.6 |
| C-22 | 2.5* | 22 | 13 | 3 | 3 | 0.08* | 0.5* | 0.01* | Balance | V-0.35* |
| C-276 | 2.5* | 16 | 16 | 4 | 5 | 0.08* | 1* | 0.01* | Balance | V-0.35* |
| G-30 | 2* | 30 | 5.5 | 2.5 | 15 | 1* | 1.5* | 0.03* | Balance | Nb-0.8*, Cu-2* |
| N | 0.2* | 7 | 16 | 0.5* | 5* | 1* | 0.8* | 0.08* | Balance | Al+Ti-0.5*, Cu-0.35* |
| W | 2.5* | 5 | 24 | – | 6 | 1* | 1* | 0.12* | Balance | V-0.6* |
| X | 1.5* | 22* | 9* | 0.6* | 18.5* | 0.5* | 0.5* | 0.1* | Balance | - |
