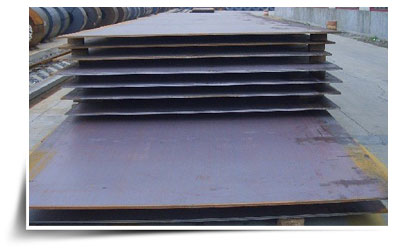

Carbon Steel Plate
Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Carbon Steel Plate. Available in different lengths, thicknesses and sizes, these Carbon Steel Plate are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Carbon Steel Plate as per customers’ requirements.
What is Carbon Steel?
Carbon steel is steel in which the main interstitial alloying constituent is carbon in the range of 0.12–2.0%. The American Iron and Steel Institute (AISI) defines that: Steel is considered to be carbon steel when no minimum content is specified or required for chromium, cobalt, molybdenum, nickel, niobium, titanium, tungsten, vanadium or zirconium, or any other element to be added to obtain a desired alloying effect,when the specified minimum for copper does not exceed 0.40 percent,or when the maximum content specified for any of the following elements does not exceed the percentages noted: manganese 1.65, silicon 0.60, copper 0.60.
The term "carbon steel" may also be used in reference to steel which is not stainless steel; in this use carbon steel may include alloy steels.As the carbon percentage content rises, steel has the ability to become harder and stronger through heat treating; however, it becomes less ductile. Regardless of the heat treatment, a higher carbon content reduces weldability. In carbon steels, the higher carbon content lowers the melting point.
We are an ISO 9001:2008,ISO 9001-2008, ISO 14001-2004, OHSAS 18001-2007, NSIC-CRISIL, EEPC, and QA-UKAS (ISO 9001-2008), SSI Certified company that follows total Quality Management System. and have been recognized as one of the world’s leading stockists and manufacturer of quality metals for over two decades and are committed to quick responses, unsurpassed quality, competitive pricing, reliable deliveries and an exhaustive inventory.
| Type | Carbon Steel Plate |
| Grade | IS 2062 Gr.A,B & C, IS 2002 Gr.1 & 2, ASTM A 516 Gr.60 & 70, ASTM A515 Gr.70, A36, A572 Gr.50, A588, 1045, A514 T-1 |
| Size | Maximum width 1400mm |
| Width | 36″ to 120″ |
| Length | 96″ to 480″ |
| Thickness | 3/16″-8″ |
| Delivery time | up to the order quantity |
| Order | Accept custom order |
| Quality Assurance | They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
| Marking & Packing | Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases.On special requests we can also, make custom marking on our products. |
| Application |
|
| Test Certificates | Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. / Under Third Party Inspection with Excise Gate Pass to available benefit. |
Chemical Composition
| Constituent | Percent |
| Carbon, Max. | 0.16 |
| Manganese, Min | 0.30 |
| Silicon, Max. | 0.25 |
| Sulphur, Max. | 0.030 |
| Phosphorous, Max. | 0.030 |
| Aluminium, Min | 0.02 |
Mechanical Properties
| MECHANICAL PROPERTIES | |
| Property | Grade * |
| Tensile Strength Mpa (kgf/mm²) | 350 to 450 ( 36 to 46 ) |
| Yield Strength. Mpa ( Kg/mm²) Min | 240 (25) |
| Elongation, Min percent on guage length 5.65 OSo | 25 |
| Bend | t |
| EC v ( for 2.80-3.15 mm thickness) min | 13.5 |
| * Both longitudinal and transverse directions. | |
TOLERANCE AS PER IS : 513 |
|||
Tolerance on Thickness of Sheets |
|||
Tolerance on the thickness for different width |
|||
| Nominal Thickness |
Upto 1250 mm |
Above 1250 Upto 1600 |
Above 1600 |
| Upto 0.25 | +/- 0.03 | - | - |
| Above 0.25-0.40 | +/- 0.04 | - | - |
| Above 0.40-0.60 | +/- 0.05 | +/- 0.06 | - |
| Above 0.60-0.80 | +/- 0.06 | +/- 0.07 | +/- 0.08 |
| Above 0.80-1.00 | +/- 0.08 | +/- 0.09 | +/- 0.10 |
| Above 1.00-1.25 | +/- 0.09 | +/- 0.10 | +/- 0.12 |
| Above 1.25-1.60 | +/- 0.11 | +/- 0.12 | +/- 0.14 |
| Above 1.60-2.00 | +/- 0.12 | +/- 0.14 | +/- 0.16 |
Tolerance on Width Of Sheets |
||
| Width of Sheets | Tolerance | |
| Upto 1250 mm | +7 | -0 |
| Above 1250 mm | +10 | -0 |
