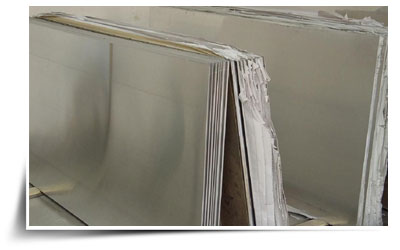

Stainless Steel Plate
Trident Enterprises & Fitting are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Stainless Steel Plate. Available in different lengths, thicknesses and sizes, these Stainless Steel Plate are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Stainless Steel Plate as per customers’ requirements.
What is Stainless Steel?
In metallurgy, stainless steel, also known as inox steel or inox from French "inoxydable", is a steel alloy with a minimum of 10.5% chromium content by mass.Stainless steel does not readily corrode, rust or stain with water as ordinary steel does. However, it is not fully stain-proof in low-oxygen, high-salinity, or poor air-circulation environments.There are different grades and surface finishes of stainless steel to suit the environment the alloy must endure. Stainless steel is used where both the properties of steel and corrosion resistance are required.
Stainless steel differs from carbon steel by the amount of chromium present. Unprotected carbon steel rusts readily when exposed to air and moisture. This iron oxide film (the rust) is active and accelerates corrosion by forming more iron oxide; and, because of the greater volume of the iron oxide, this tends to flake and fall away. Stainless steels contain sufficient chromium to form a passive film of chromium oxide, which prevents further surface corrosion by blocking oxygen diffusion to the steel surface and blocks corrosion from spreading into the metal's internal structure.Due to the similar size of the steel and oxide ions, they bond very strongly and remain attached to the surface.
We are an ISO 9001:2008,ISO 9001-2008, ISO 14001-2004, OHSAS 18001-2007, NSIC-CRISIL, EEPC, and QA-UKAS (ISO 9001-2008), SSI Certified company that follows total Quality Management System. and have been recognized as one of the world’s leading stockists and manufacturer of quality metals for over two decades and are committed to quick responses, unsurpassed quality, competitive pricing, reliable deliveries and an exhaustive inventory.
| Type | Stainless Steel Plate |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
| Grade | ASTM A240 Gr. TP304, 304L, 304H, 304LN, 309, 309S, 309H, 310S, 310H, 316, 316L, 316H, 316LN, 316Ti, 317, 317L, 321, 321H, 347, 347H, 348, 348H, 409, 410, 420, 430 etc |
| Size | 1000*2000mm, 1220*2440mm, 1250*2500mm |
| Width | 500-1800mm |
| Length | 1000-6000mm or as required |
| Thickness | 0.3-30mm |
| Delivery time | up to the order quantity |
| Order | Accept custom order |
| Quality Assurance | They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products. |
| Marking & Packing | Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases.On special requests we can also, make custom marking on our products. |
| Application |
|
| Test Certificates | Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. / Under Third Party Inspection with Excise Gate Pass to available benefit. |
Chemical Composition
| S.S. | 301 | 303 | 304 | 304L | 309 | 309s | 310s | 316 | 316L | 321 | 347 |
| Carbon | 0.15 | 0.15 | 0.08 | 0.03 | 0.20 | 0.08 | 0.08 | 0.08 | 0.03 | 0.08 | 0.08 |
| Manganese | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| Silicone | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.5 | 1.00 | 1.00 | 1.00 | 1.00 |
| Chromium | 16/18 | 17/19 | 18/20 | 18/02 | 22/24 | 22/24 | 24/26 | 23/26 | 16/18 | 17/19 | 17/19 |
| Nickel | 6.0/8.0 | 8.0/10 | 8.0/12 | 8.0/12 | 12/15 | 12/15 | 19/22 | 10/14 | 10/14 | 9.0/12 | 9/13 |
| Molybdenum | 2.0/3.0 | 2.0/3.0 | |||||||||
| Phosphorus | 0.045 | 0.20 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| Nitrogen | |||||||||||
| Suiphur | 0.03 | 0.15MIN | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| Selenium | |||||||||||
| Aluminium | |||||||||||
| Titanium | 5XC | ||||||||||
| Cb+Ta | 10XC | ||||||||||
| Tensile Strength |
110 | 90 | 85 | 60 | 90 | 90 | 95 | 85 | 78 | 87 | 92 |
| 2% Yield Strength |
40 | 35 | 35 | 30 | 40 | 40 | 40 | 35 | 30 | 35 | 35 |
| Elongation in 2' |
60 | 50 | 55 | 55 | 45 | 45 | 45 | 55 | 55 | 55 | 50 |
| Rockwell | 85 | 84 | 80 | 76 | 85 | 85 | 87 | 80 | 76 | 80 | 84 |
| Brinell | 165 | 160 | 150 | 140 | 165 | 165 | 170 | 150 | 145 | 150 | 160 |
| En58E | En58J&H | En58C | |||||||||
| X12 CrNi17.7 |
X5 CrNi18.9 |
X5 CrNi18.8 |
x5 CrNiMo18.12 |
X2 CrNiMo19.1 |
|||||||
| AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. |
300 Series Austinetic Physical Properties
| Type | UNS | Tensile (ksi) min |
Yield (ksi) min |
Elongation min |
Hardness (Brinell) max |
Hardness (Rockwell B) max |
| 302 | S30200 | 75 | 30 | 40% in 2" | 183 | 88 |
| 304* | S30400 | 75 | 30 | 40% in 2" | 183 | 88 |
| 304L* | S30403 | 70 | 30 | 40% in 2" | 183 | 88 |
| 309 | S30900 | 75 | 30 | 40% in 2" | 217 | 95 |
| 309S | S30908 | 75 | 30 | 40% in 2" | 217 | 95 |
| 310 | S31000 | 75 | 30 | 40% in 2" | 217 | 95 |
| 310S | S31008 | 75 | 30 | 40% in 2" | 217 | 95 |
| 316* | S31600 | 75 | 30 | 40% in 2" | 217 | 95 |
| 316L* | S31603 | 70 | 25 | 35% in 2" | 217 | 95 |
| 317 | S31700 | 75 | 30 | 35% in 2" | 217 | 95 |
| 317L | S31703 | 75 | 30 | 35% in 2" | 217 | 95 |
| 321 | S32100 | 75 | 30 | 40% in 2" | 183 | 88 |
| 347 | S34700 | 75 | 30 | 40% in 2" | 183 | 88 |
400 Series Martensitic Physical Properties
| Type | UNS | Tensile (ksi) min |
Yield (ksi) min |
Elongation min |
Hardness (Brinell) max |
Hardness (Rockwell B) max |
| 410* | S41000 | 65 | 30 | 20% in 2" | 217 | 95 |
| 410S | S41008 | 60 | 30 | 22% in 2" | 183 | 88 |
| 416 | S41600 | 75 | 40 | 30-25% in 2" | - | 82 |
| 420 | S42000 | 95 | 60 | 30-25% in 2" | - | 92 |
| 430 | S43000 | 65 | 30 | 22% in 2" | 183 | 88 |
| 440C | S44004 | - | - | - | - | - |
Mechanical Properties
Type |
Temper |
Tensile Strength ksi |
Yield Strength ksi |
Minimum Elongation in 2" (%) |
Rockwell (1) Hardness |
| 304 304L |
Annealed Half Hard Full Hard |
100 max. 110-140 140 min. |
25-45 70-110 110 min. |
35 15 7 |
B 90 max. B 93-C 30 C 22 min. |
| 310 | Annealed Half Hard Full Hard |
100 max. 115-135 140 min. |
35-55 75-115 115 min. |
35 15 5 |
B 95 max. B 95-C 26 C 24 min. |
| 316 316L |
Annealed Half Hard Full Hard |
100 max. 110-140 140 min. |
30-50 70-110 110 min. |
35 15 6 |
B 95 max. B 95-C 26 C 24 min. |
| 321 | Annealed Half Hard Full Hard |
100 max. 110-140 140 min. |
35-55 80-120 120 min. |
35 15 6 |
B 92 max. B 95-C 26 C 24 min. |
| 347 | Annealed Half Hard Full Hard |
100 max. 110-140 140 min. |
35-55 80-120 120 min. |
35 15 6 |
B 92 max. B 95-C 26 C 24 min. |
| 403 410 |
Annealed Half Hard Full Hard |
85 max. 85-100 100 min. |
30-50 65-85 85 min. |
35 15 5 |
B 95 max. B 90-B 100 C 96 min. |
| 430 | Annealed Half Hard Full Hard |
85 max. 82-97 98 min. |
35-50 60-90 85 min. |
35 15 5 |
B 90 max. B 85-98 C 93 min. |
| 446 | Annealed Half Hard Full Hard |
95 max. 95-115 115 min. |
40-75 70-90 85 min. |
35 15 4 |
B 95 max. B 90-C 24 B 96 min. |
| A-286 | Annealed Half Hard Full Hard |
1010 max. 115-140 140 min. |
35-65 80-110 110 min. |
35 15 3 |
B 95 max. B 96-C 26 C 26 min. |
